CX-CC6050L High Precision Laser Cutting Machine

Premier choice for precision eyewear manufacturing.
Offering unparalleled repeat positioning accuracy of up to 0.02mm, enhancing cutting efficiency by 25% compared to traditional methods.
One-step processing. No molds required.

High-Speed Laser Processing Solution for the Eyewear Industry

The CX-CC6050L precision laser cutting machine revolutionizes eyewear production with its high-speed, high-precision laser processing capabilities. This cutting-edge equipment allows for the creation of any design directly on the material, eliminating the need for costly and time-consuming molds. Experience a significant efficiency boost, with cutting speeds up to 10 times faster than traditional methods.

The CX-CC6050L also features visual nesting software for optimized material utilization, minimizing waste and maximizing cost-effectiveness.

As a leading laser cutting machine company and laser cutting equipment manufacturer, CH Laser offers a solution that empowers you to innovate and produce eyewear with unmatched precision and efficiency.

No Molds Required

Unlike traditional methods that rely on costly and time-consuming molds for different frame styles, the CX-CC6050L allows for the design of any shape directly on the material. This is perfect for producing multiple styles and custom designs.

One-Step Processing

Achieve complete cutting in a single step with no need for post-processing. This machine is over ten times faster than traditional cutting equipment.

Material-Saving

The advanced control software enables visual nesting, ensuring tight material fit and significant material savings.

Advanced Technology

The direct drive of the linear motor offers superior dynamic characteristics and control precision, higher operating speeds and acceleration, longer lifespan, and reduced vibration noise and wear compared to traditional transmission methods.

Advantages of Fiber Laser Cutting

Compared with traditional metal cutting methods, laser cutting provides a faster, more efficient and flexible, non-contact cutting process.

Technical Specifications

Model No.	CX-CC6050L
Laser Wavelength	1080±5 nm
Average Output Power	500 - 3300W
Min Line Width	±0.01 mm
Repetitive Positioning Accuracy	±0.01 mm
Max Cutting Speed	60 m/min
Max Accelerate Speed	1.5G
Continuous Working Time	≥20 Hours
Cutting Range	595 mm × 595 mm
Power Supply	380VAC+10%, 50Hz
Transmission Method	Linear Motor
Dimensions	190014501800mm

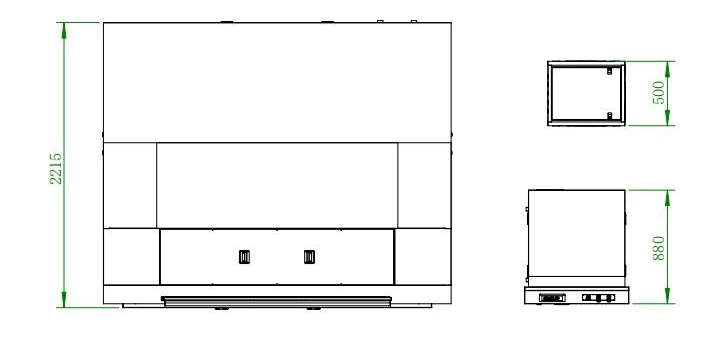

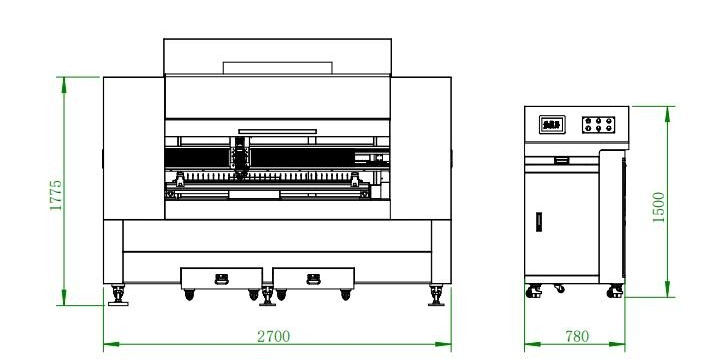

Dimensions

Samples

Honor & Certificates

We hold several prestigious certifications, including ISO9001, FDA Certificate, and Intellectual Property Management Standardization. With over 70 certificates and patents covering laser cutting, marking, welding machines, and core photonic components, our extensive portfolio highlights our industry leadership and reliability in laser technology.

Warranty & Service

Quality Assurance

To ensure the quality of our products, CH Laser takes a proactive approach right from the beginning. We use top-notch fiber laser sources for the core components of our products.

Lifetime Maintenance

We offer a comprehensive lifetime maintenance program. Our cutting-edge laser machines are designed to operate with minimal maintenance, providing you with peace of mind and allowing you to focus on your core production tasks.

Rapid Response

CH Laser boasts a highly skilled and dedicated after-sales service team. The exceptional technical expertise and commitment to excellence have earned the trust and respect of our clients.
